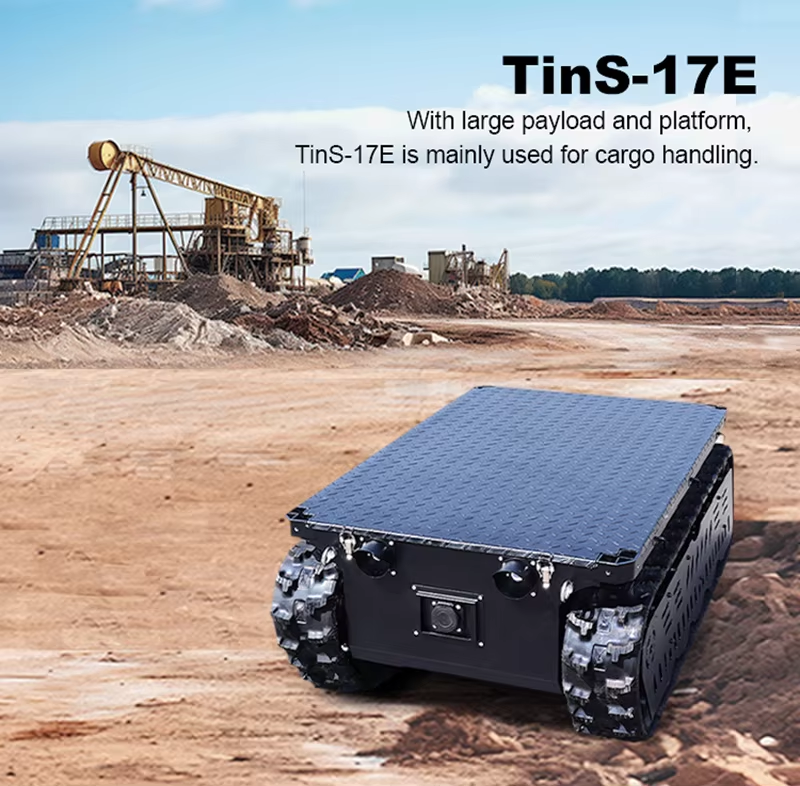

TinS-17E Remote Crawler Robot for Heavy Equipment

Introduction

Looking for a reliable way to move heavy equipment across tough terrains? The TinS-17E Remote Controlled Crawler Robot is your go-to solution for heavy-duty transportation. With a payload capacity of 500kg to 1200kg, this robust crawler robot is transforming industries like construction, logistics, and safety monitoring. Whether transporting cargo over rugged landscapes or navigating stairs, the TinS-17E is designed to streamline operations and boost efficiency.

This article explores the specifications, features, usage instructions, what’s included, future applications, and answers frequently asked questions about this powerful machine.

Specifications

Specification	Details
Dimensions	2000 x 1300 x 760 mm
Inner Battery Space	900 x 760 x 500 mm
Self Weight	450 kg (excluding battery)
Speed	2.5–12 km/h (customizable up to 60 km/h)
Driving Wheel Diameter	260 mm
Designed Load	500–1200 kg
Track Width	230 mm
Gear Ratio	1:2.5 to 1:60
Motor	(3KW–11KW) x 2
Climbing Ability	≤30° (can climb stairs)
Rated Motor Speed	1500–3000 r/min
Maximum Span	1520 mm
Ground Clearance	200 mm
Obstacle Crossing Ability	380 mm
Shock Absorption System	Matilda with Christie
Waterproof Rating	IP65

Key Features

The TinS-17E is packed with features for performance and versatility:

1. Structural Performance
   • Parallelogram-shaped chassis with high ground clearance for excellent terrain adaptability.
   • Superior stair-climbing and off-road capabilities.
   • Tracks wrap around the body to protect it and ensure stability.
   • Large flat top plate, ideal for adding guardrails for use as a transport platform.
2. Protection Level
   • IP65 rating for dust-tight and water-jet resistance.
3. Communication Protocol
   • Supports 485 communication and CAN protocol for reliable control.
4. Working Mode
   • Uses DC brushless Hall motors or servo motors with encoders for precise control of steering, speed, and stroke.
   • Capable of in-place rotation or spiral movement as needed.
5. Driver Protections
   • Includes safeguards against overvoltage, overcurrent, undervoltage, overheating, and short circuits.
6. Control Methods
   • Options include joystick, standard aircraft model remote control, or upper computer commands.
   • Features speed loop, displacement loop, and differential loop for accurate speed regulation.
7. Rubber Tracks
   • Offer strong ground adhesion and a long grounding area for stability.
8. Tensioning Wheel
   • Adjustable to maintain optimal track tension.
9. Applications
   • Ideal for safety monitoring, robotic arm carriers, lifting platforms, and transport vehicles.
10. Battery
    • Lithium iron phosphate battery with high energy density, long cycle life, excellent safety, low self-discharge, and no memory effect.
11. Shock Absorption
    • Combines Matilda suspension and Christie shock absorption for smooth operation on rough terrain.
12. Lighting
    • High and low beam switching for effective nighttime use.
13. Customization
    • Supports customization and secondary development for specific needs.

How to Use the TinS-17E

Operating the TinS-17E is user-friendly with its flexible control options. Here’s how to get started:

1. Charge and Install the Battery

   Fully charge the lithium iron phosphate battery and secure it in the 900 x 760 x 500 mm battery space.

2. Select Your Control Method
   • Joystick Control: For precise, hands-on operation.
   • Standard Aircraft Model Remote Control: Intuitive for Stuart for users familiar with remote devices.
   • Upper Computer Command Control: Suitable for programmed or automated tasks.
3. Power On and Operate

   Turn on the robot, choose your control method, and consult the user manual for detailed guidance. Use the controls to navigate terrains, climb stairs, or transport cargo.

The TinS-17E’s closed-loop system ensures accurate movement, whether rotating in place or crossing obstacles up to 380 mm.

What’s in the Box

When you purchase the TinS-17E, you’ll typically Bennetts typically receive:

• TinS-17E Crawler Robot
• Remote Control (based on configuration)
• Joystick Controller (based on configuration)
• User Manual
• Battery (may be sold separately)
• Charger
• Additional Accessories/Tools (for assembly or basic operation)

Confirm with your supplier for exact contents, as components like the battery may vary.

Future Applications

The TinS-17E is already a leader in cargo handling, but its potential is vast. Here are some future uses:

• Disaster Relief: Delivering supplies to remote or disaster-affected areas.
• Logistics Support: Transporting heavy equipment in warehouses or industrial sites.
• Agriculture: Moving materials across uneven farmland.
• Construction: Simplifying material transport on complex job sites.

With its customizable design, future versions could incorporate AI and autonomous navigation, enabling fully automated transport solutions for enhanced efficiency and safety.

Frequently Asked Questions (FAQ)

1. What is the maximum payload capacity?

   It supports loads from 500 kg to 1200 kg.

2. Can it operate in wet conditions?

   Yes, its IP65 rating ensures resistance to dust and water jets.

3. How long does the battery last?

   Battery life depends on usage, but the lithium iron phosphate battery offers high energy density and long cycle life.

4. Is it easy to operate?

   Yes, multiple control options make it user-friendly for various skill levels.

5. Can it climb stairs?

   Yes, it can handle slopes up to 30° and navigate stairs.

6. Is customization available?

   Yes, it supports customization and secondary development.

7. What is the warranty period?

   Warranty details vary by supplier—check with your provider.

8. How fast can it go?

   Standard speed is 2.5–12 km/h, with a customizable option up to 60 km/h.

9. What terrains can it handle?

   It performs well on rough terrains, with 200 mm ground clearance and 380 mm obstacle-crossing ability.

10. Is technical support available?

    Yes, support is typically provided by the supplier—verify with your seller.

Conclusion

The TinS-17E Remote Controlled Crawler Robot is a robust, versatile, and efficient solution for heavy equipment transportation. Its durable design, advanced features, and customizable options make it a valuable tool for industries worldwide. Whether you’re aiming to improve productivity, enhance safety, or tackle challenging terrains, the TinS-17E is ready to deliver. Discover its potential today and elevate your operations!
